Parallel Type Air Grippers
Low Profile Air Gripper/With One Finger Fixed MHF2-□F
 | ・Width: Max. 25% reduction (40mm→30mm) ・Weight: Max. 25% reduction (275g→205g) ・The fixed finger can be set to a reference position. ・Fixed finger position adjustment functio |
| Type | Series | Cylinder bore size (mm) |
|---|---|---|
| With One Finger Fixed | MHF2-□F | 8，12，16，20 |

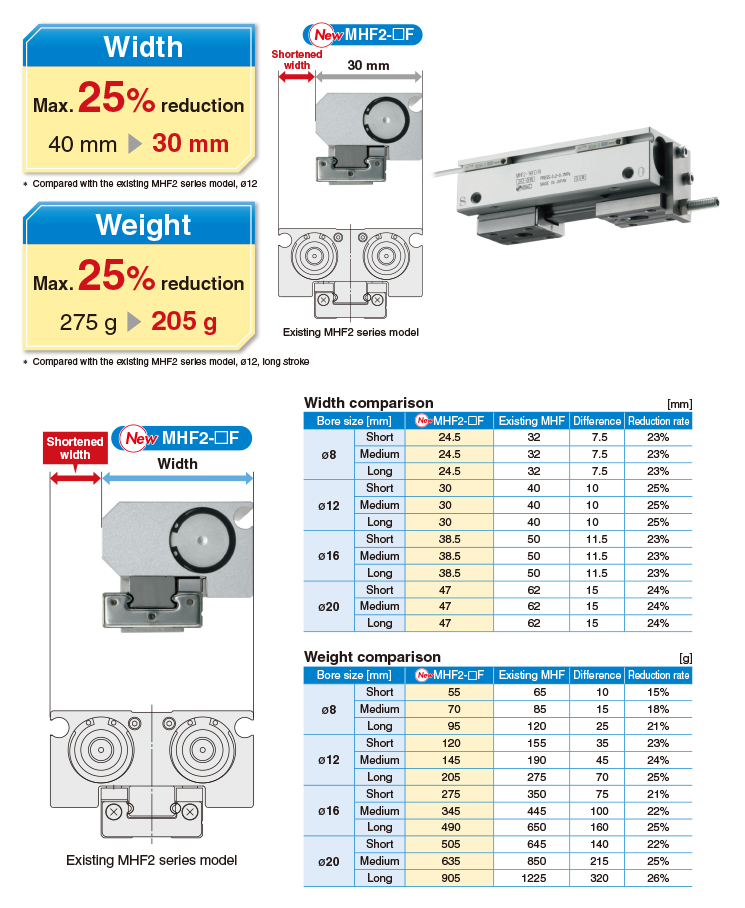

■Compact and lightweight

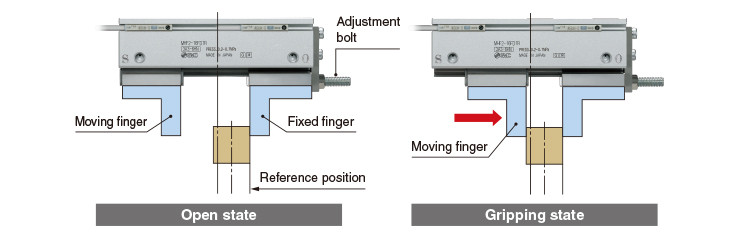

■The fixed finger can be set to a reference position.

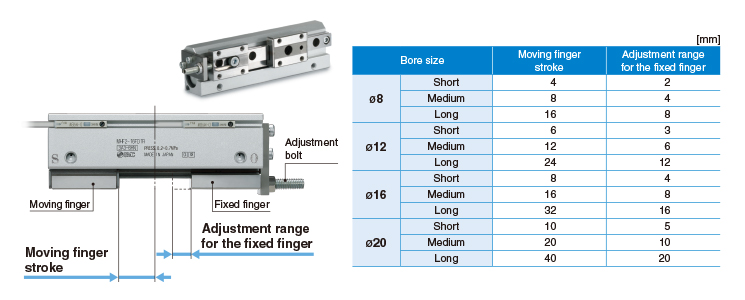

■Fixed finger position adjustment function
Fine adjustment is possible by using the adjustment bolt.

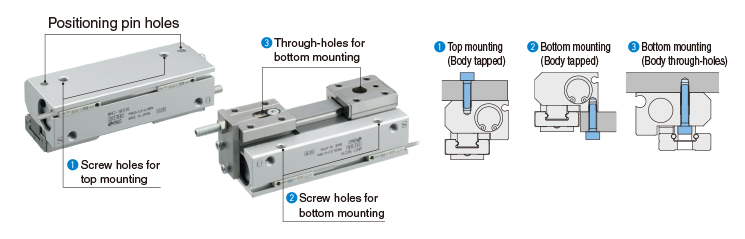

■Positioning pin holes have been standardized. 3 types of mounting are possible.

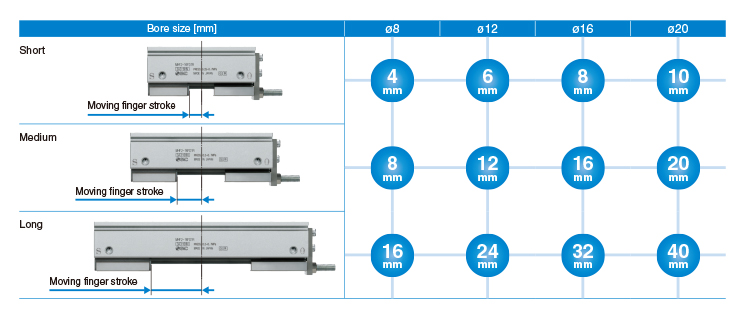

■3 stroke lengths can be selected for moving finger.
3 standard stroke lengths are available for each bore size. Stroke can be selected to suit the workpiece.
■Compact solid state auto switches are mountable.
Low Profile Air Gripper/With One Finger Fixed MHF2-□F
- Product Code: MHF2-□F Low Profile Air Gripper/With One Finger Fixed
- Availability: In Stock
-
-
